Application Type
Utility Model
Application SubType
Utility model
(10) Registration Number and Date
Status
ACTIVE ( Other event occurred)
(180) Expiration Date
(20) Filing Number and Date
PH 22025050729 2025.06.23
(40) Publication Number and Date
PH 22025050729
2025.07.07
(86) PCT Filing Number and Date
(87) PCT Publication Number and Date
(85) National Entry Date
(30) Priority Details
(71/73) Applicant
(EN) ERODIAS, Katrina J
(72) Inventor
(EN) ERODIAS, Katrina J
(74) Representative
(EN) ERODIAS, Katrina J
(54) Title
(EN) ELECTRIC FISHING SPEAR
(57) Abstract

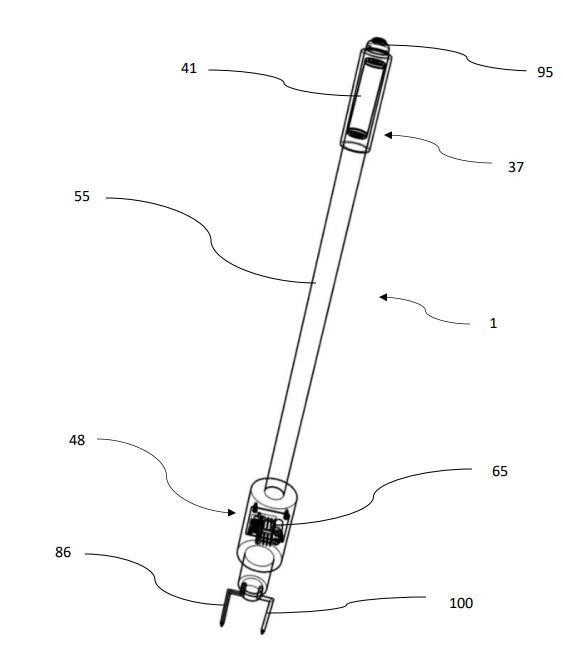

Disclosed is an electric fishing spear relates to an electric fishing spear device designed to enhance fish capture efficiency by integrating a high-voltage electrical discharge system into a traditional spear format. The device comprises a shaft which serves as the primary structural support, and a handle grip affixed to its uppermost part to provide ergonomic handling. A push-button switch is disposed at the top of the handle grip, allowing the user to control the electrical operation. Enclosed within the handle grip is a rechargeable battery that serves as the primary power source for the device. Attached below the handle grip is a circuit enclosure that houses a step-up DC converter. This converter is electrically connected to both the rechargeable battery and the push-button switch, and is configured to increase the voltage to a level suitable for stunning aquatic targets. Located at the bottom tip of the shaft are a pair of spearhead electrodes, a positive electrode and a negative electrode, both electrically connected to the output terminals of the step-up converter. These electrodes serve a dual function: acting as the physical spearhead for thrusting into the fish, and as conductive terminals through which high-voltage current is delivered. Upon activation of the push-button switch, current flows from the battery to the step-up converter, which boosts the voltage and sends it to the spearhead electrodes. When these electrodes come into contact with a fish, the circuit is completed through the fish’s body, resulting in immediate stunning or immobilization. This configuration provides an efficient, safe, and portable solution for smallscale and recreational fishing.

(58) Citations
License Details
(98) Annuity Details
YearValidity StartValidity EndPayment
Document Type Date Action
claims section u1 2025-07-05T00:00:00Z
description section u1 2025-07-05T00:00:00Z
drawing section u1 2025-07-05T00:00:00Z
abstract section u1 2025-07-05T00:00:00Z
Event NameDateLink
Application filed2025-06-23
Document published2025-07-07
Other event occurred2025-09-28
