Application Type
National
Application SubType
(10) Registration Number and Date
10202402495S
Status
ACTIVE ( Other event occurred)
(180) Expiration Date
(20) Filing Number and Date
SG 10202402495S 2023.12.31
(40) Publication Number (Gazette Number) and Date
(85) National Entry Date
(30) Priority Details
US
US62/719,367
2017.12.31
(51) IPC Classes
(71/73) Applicant
(72) Inventor
(74) Representative
(54) Title
(57) Abstract

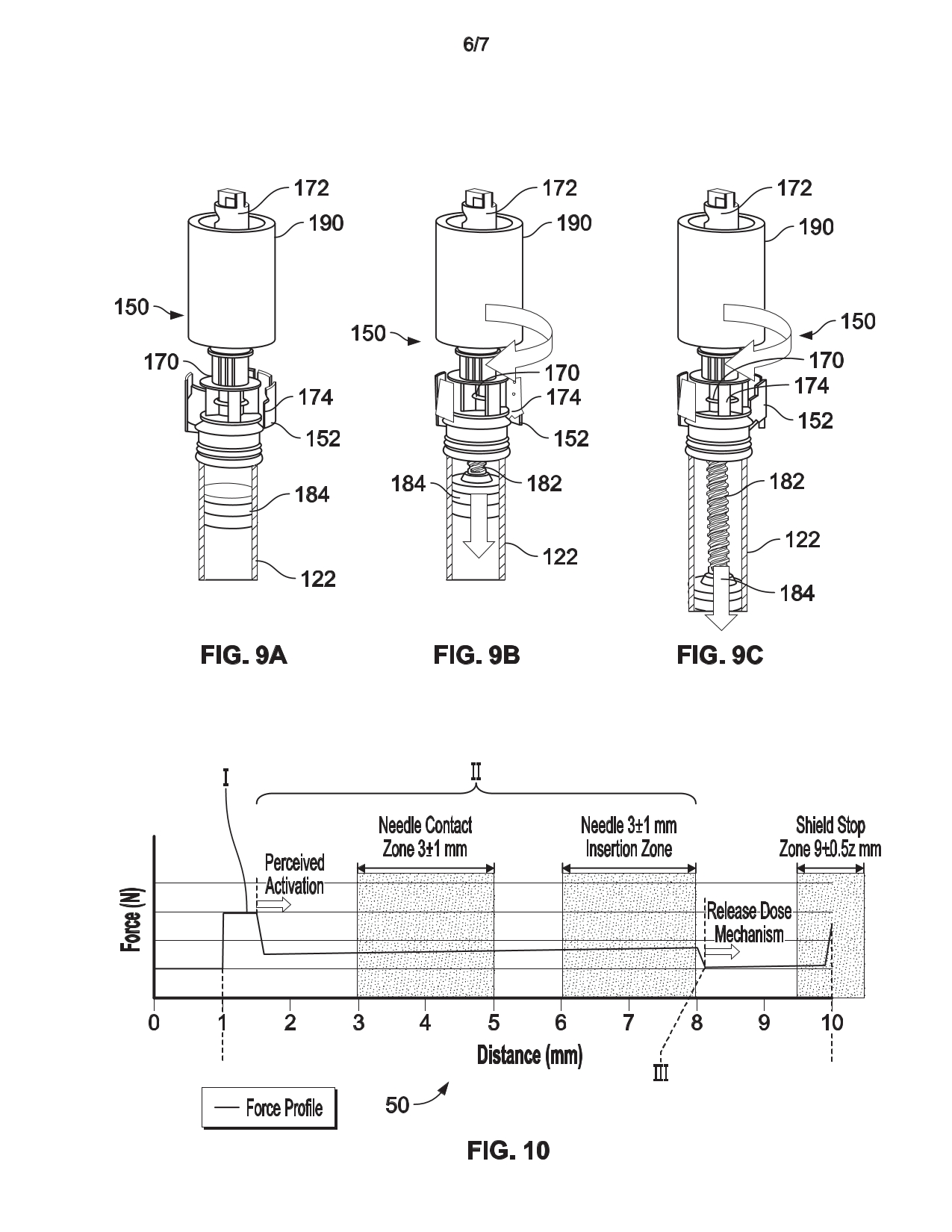

(EN) 21 ACTIVATION MECHANISM FOR DRUG DELIVERY DEVICE ABSTRACT A drug delivery device includes a housing, an injection assembly at least partially disposed in the housing, a shield, and a drive assembly at least partially disposed in the housing and coupled with the injection assembly and the shield. The shield has an extended position where at least a proximal end thereof extends a distance beyond a proximal end of the housing. The injection assembly includes a needle or cannula having an endpoint. Upon moving the shield axially towards the distal end of the housing a predetermined distance, a retraction profile commences whereby the drive assembly administers a medicament via the injection assembly. A peak resistance force is exerted within approximately the first 12mm of axial movement of the shield. Fig. 1
(58) Citations
License Details
(98) Annuity Details
| Year | Validity Start | Validity End | Payment |
|---|
