Application Type
Utility Model
Application SubType
Utility model
(10) Registration Number and Date
PH22025050731 2025.08.08
Status
ACTIVE ( IP right granted)
(180) Expiration Date
(20) Filing Number and Date
PH 22025050731 2025.06.23
(40) Publication Number and Date
PH 22025050731
2025.06.30
(86) PCT Filing Number and Date
(87) PCT Publication Number and Date
(85) National Entry Date
(30) Priority Details
(74) Representative
(54) Title
(EN) CLOUD-BASED HEAD-END SYSTEM FOR AUTOMATED METERING INFRASTRUCTURE (AMI)
(57) Abstract

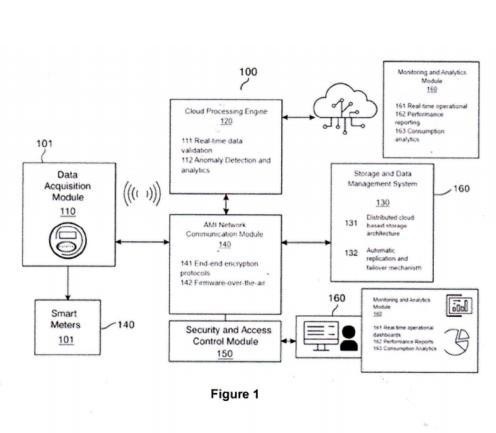

The present disclosure relates to a cloud-based head-end system for Automated Metering Infrastructure (AMI) designed to support the real-time acquisition, processing, storage, and analysis of data from a plurality of smart electricity meters. The system comprises a data acquisition module operatively interfaced with smart meters using one or more communication protocols selected from Radio Frequency (RF), Programmable Logic Controller (PLC), Cellular, and Low-Power Wide Area Networks (LoRaWAN), and is configured to normalize incoming metering data. A cloud processing engine is provided and configured to perform realtime data validation, anomaly detection, and integration with utility billing systems. A storage and data management system is further included, comprising a distributed cloud-based storage architecture capable of scalable, redundant, and compliant archiving of metering data. The system also includes an AMI network communication module for enabling secure, bidirectional data transmission and remote meter control, employing encryption protocols such as Transport Layer Security (TLS) or Advanced Encryption Standard (AES). A security and access control module ensures role-based user access and compliance with Philippine data privacy regulations. Additionally, a monitoring and analytics module is provided to deliver realtime insights, operational dashboards, performance reports, and consumption analytics. The disclosed system improves operational efficiency, enhances data security, and provides a reliable platform for energy consumption analysis and utility management.

(58) Citations
License Details
(98) Annuity Details
YearValidity StartValidity EndPayment
Document Type Date Action
drawing section u1 2025-06-28T00:00:00Z
biblio section u3 2025-08-11T00:00:00Z
abstract section u1 2025-06-28T00:00:00Z
claims section u1 2025-06-28T00:00:00Z
description section u1 2025-06-28T00:00:00Z
Event NameDateLink
Application filed2025-06-23
Document published2025-06-30
IP right granted2025-08-08
